W SECTION PALISADE STEEL FENCING

W Section Palisade Security Fencing is exported to and popularly used in North America, Europe, Australian, Middleeast and African countries. W pale palisades are popularly used stronger fencing compared with D pale fences.

W Style (Triple Point and One Point) Fencing Types and Target Countries

W pale one point is a design with a single spike, while triple point is a design with one centre spike and two minor spikes.

2.50 m Hight Triple Pointed Palisade fence, W section, Complete with Posts, 2.50m high, 6m double leaf gate and 1.20 m single leaf gates.

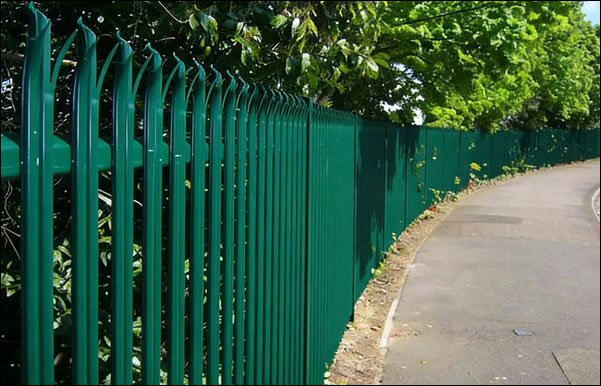

2mm W section palisade in a galvanised finish, standard heights are 1.8m, 2.1m and 2.4m, delivered at UK port, supply for UK and Ireland.

W galvanised palisade fencing 1.8 metres high with the appropriate number of bolt down posts, with one pair of palisade gates 1.8 metre high x1.8metre wide each leaf complete with posts.

75mm width, 3.5mm thickness palisade fence w shape, for Saudi Arabia.

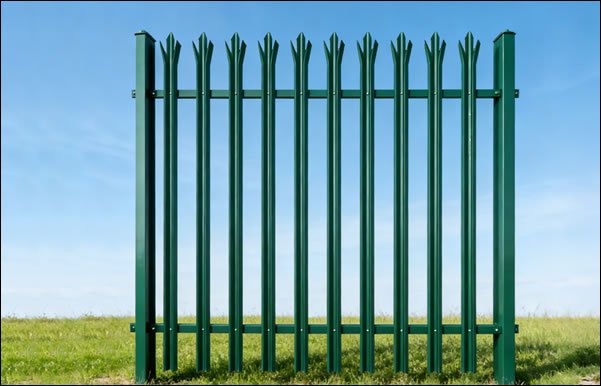

1.8m complete fence panel for self-assembly, galvanized palisade partition in profile W 2mm triple pointed top and single pointed top.

2 metre high grey single point polyester powder coated palisade fence panels and posts, W profile, 3mm thick, single point, meeting standard BS 1722 Pt 12, delivered to Manchester area, USA.

Palisade fencing W style at 2.4 m (8') hight, shipped to Vancouver, Canada, suppliers/installers of security fencing.

2.4m high 3mm thick W section Palisade fencing delivered to the UK port, for construction.

W Style (Round and notched Top ) Fencing Type and Target Countries

Euro Style Steel Fencing with Round and Notched W Section Pales
Supplied to fencing contractors / distributors of United Kingdom and European countries.

Material and top style:
Steel Palisade Galv & PPC RAL6005 Finish
Rounded & Notched ‘W’ Section Pales

Spec:
1.8m High Steel palisade.
2.5mm Rounded & Notched ‘W’ Section Pales.
8mm Bolts with Permacone fixings.
50x50x6mm RSA Rails.
Centre support Legs

Posts with Base Plates for setting into ground.
All with necessary Fishplates & Fittings:
End Post, 2.4m x 102 x 44mm
Intermediate Post, 2.4m x 102 x 44mm
Stepped Intermediate Post, 2.4m x 102 x 44mm
Wall cleat set

Palisade Single Leaf Gate
1.8m High (Less 50mm Ground Clearance) x 1.20m Wide (Between Posts) clad to match above fencing.
Complete with sliding latch holed for padlock and dropbolt.  Left Hand Hanging, Centre Hung + opening in.
Suitable hanging Gate Post & Slam Post with base plates for setting into ground.
Gate posts tabbed in-line to take above fencing.

Palisade Single Leaf Gate.
1.8m High (Less 50mm Ground Clearance) x 1.25m Wide (Overall Wallplate) clad to match above fencing.
Complete with sliding latch holed for padlock and dropbolt.  Left Hand Hanging, Centre Hung + opening out.
Suitable hanging wall plate & bolt on slide latch keep

Palisade Single Leaf Gate
1.8m High (Less 50mm Ground Clearance) x 1.7m Wide (Overall Wallplates) clad to match above fencing.
Complete with sliding latch holed for padlock and dropbolt.  Left Hand Hanging, Centre Hung + opening out.
Suitable hanging wallplate & slam wallplate.  Right hand wallplate complete with 800 x 750mm wing panel inline.

Palisade Single Leaf Gate
1.8m High (Less 50mm Ground Clearance) x 1.7m Wide (Overall Posts) clad to match above fencing.
Complete with sliding latch holed for padlock and dropbolt.
Left Hand Hanging, Centre Hung + opening out.
Hanging wallplate & slam wallplate.  Left hand Post complete with 1.25 x 250mm wing panel inline ensuring a level top.

700mm High Steel palisade
2.5mm Rounded & Notched ‘W’ Section Pales.  8mm Bolts with fixings.
50x50x6mm RSA Rails.
Centre support Legs.
Posts with 150 x 150 x 10mm base plates holed to take Bolts & 400mm long x 25mm dia Rebar for setting into brick wall.
All with necessary Fishplates & Fittings.
Right hand end post, 700mm x 102 x 44mm
Corner posts, 700mm x 102 x 44mm

W PALE TOPS

A = Triple point and splayed
B= Single Point
C= Rounded top
D= Rounded top and notched

"W" Profile Pales
Most commonly used and stronger than D Section

W Section Palisade Security Fencing System - with Panels and Barbed Wire: Typical Design for Airport Fencing

Designed for airport infrastructure and port expansion projects

The supply of palisade fencing materials as per specification below

Specification For Security Fencing
Security Fence Minimum requirements:
Height: 2.4 meters height
Overhand: 45 overhangs fitted with security razor wire or concerting wire.
Structure: Fence must be embedded in concrete.
Holes: Any services running through the fence must be secured
at the point of protrusion through fence.
Fence at this area must be secured.
Ditches: Any ditches under fence must be secured with chain link fence and secured to prevent intrusion.
Corrosion protection galvanizing: all fence material to carry at least a 10-year guarantee against corrosion.

Palisade Security Fencing
Including:
Pale
Horizontal rails
Posts
Intermediate support legs
Fishplates
"W" Section Pale Fixing Bolts with Security Nut
Horizontal Rail Fixing Bolts with Security Nut
Y Extension Arm Fixing Bolts with Security Nut
Barbed wire

The main support posts for the fencing shall be at 2.75m centre to centre or as may be appropriate, intermediate posts shall be topped by fixed "Y" typed barbed wire holder with a leg length of min 250 x 40 x 8mm. All fencing members shall be maintenance free and consequently manufactured using either an austenitic stainless steel or carbon steel galvanized at the manufacturer's work. As a minimum, however, the following requirements

The panels and parts shall apply:

Pales
Shall be cold rolled  "W" section profile to conform fully with all the requirements of BS 1722 Pt 12. There shall be 17 pales per 2.75m bay each pale shall be minimum 2.4m long and 3.0mm thick grade HR 15 steel with a triple pointed top. Pales shall be fixed at 152mm centers using security fasteners specified.

Horizontal rails
Shall  be 50 x 50 x 6mm angle iron grade 43 A steel. Each rail shall be holed 17 times to fix pales and twice for connection to fishplates specified separately.

Posts
Shall be minimum 3.10m long in 102 x 44 x 7.44 kg/m RSJ section  grade 43 A steel. Each post shall be twice slotted to receive fishplates specified separately and twice holed for fixing "Y" extension arm specified separately.

Intermediate Support legs
Shall be 450mm long 30 x 10mm flat Grade 43 A steel. There shall be two legs evenly spaced to each 2.75 wide bay.

Fishplates
Shall be 140mm long in 30 x 8mm flat Grade 43 A steel and twice slotted for fixing horizontal rails with bolts specified separately

"W" Section Pale Fixing Bolts with Security Nut
Shall be "T" head parameters 8 x 25mm long two number per pale secured with Security Nuts.

Horizontal Rail Fixing Bolts with Security Nut
Shall be M12 x 30mm long cup square bolts two number per horizontal rail secured with Security Nuts

Extension Arm Fixing Bolts with Security Nut Shall be M8 x 25mm cup square bolts two number per extension arm secured with Security Nut

Palisade Fencing Finish
After fabrication all steelwork shall be hot dip galvanized to BS 729 specification, multi stage in line pre-treated comprising Alkaline degrease, Acid wash, De-oxidizing, Zinc Phosphates and Chromate conditioning. Following this chemical pre-treatment materials shall be high pressure blow dried and oven degassed prior to coating with Architectural grade polyester resin and oven curing. All processes shall be carried out through a continuous on line plant in accordance with BS 6497 and to exceed the performance requirements of DTP 6024 and BS 1722 Part 16. Finish shall be hot spun galvanized in accordance with BS 729 and coated with color matching coating repair material.
